Engineering Service Bulletin 201.222_01 LPA3 - CML3 - CML4 Faceplate Detachment Issues

Known Issue

• Screen detaching from faceplate assembly
• Becoming loose - resulting in potential screen/product failure

Corrective Actions

• Bonding screen into faceplate assembly – permanently
• Using liquid adhesive sealant
• Applied prior to final product assembly

Safety Observations

• Sealing is required to be placed under MP Filtri instruction by agreed, competent and trained personnel only

User / Customer Engagement

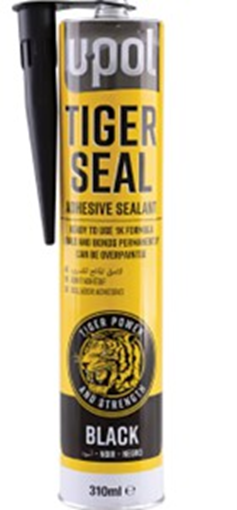

• The user is permitted to bond the back side of the screen. Using the permitted bonding agent (Tiger Seal):



Safety Data Sheet:

https://www.dropbox.com/scl/fi/9vy4u2d23vbgfo3qk53j1/CTL-716-6160S-6161T-6162V_SDS.pdf?rlkey=99kb9h56m9teqaa0dumeaqsab&st=ik7vdic0&dl=0

Technical Data Sheet: https://www.dropbox.com/scl/fi/3egfe10qk3h2t9pn0jkgq/ctl7166160s-ctl7166162v_tds. pdf?rlkey=gchhzaf4x1z231pj377dpie33&st=x7ub1j1v&dl=0

Prerequisite Step

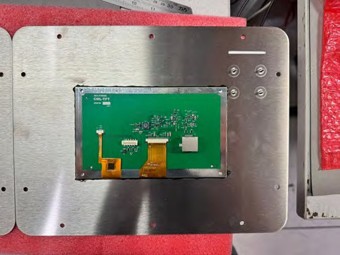

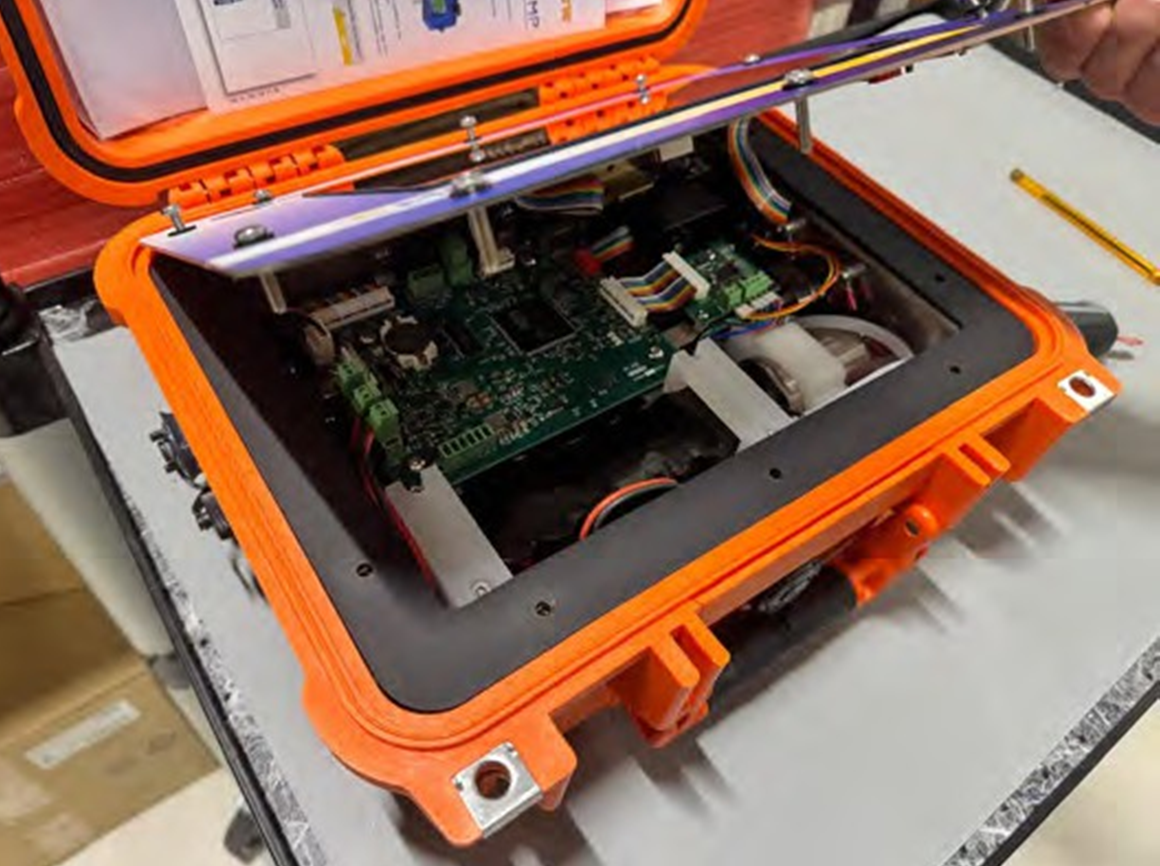

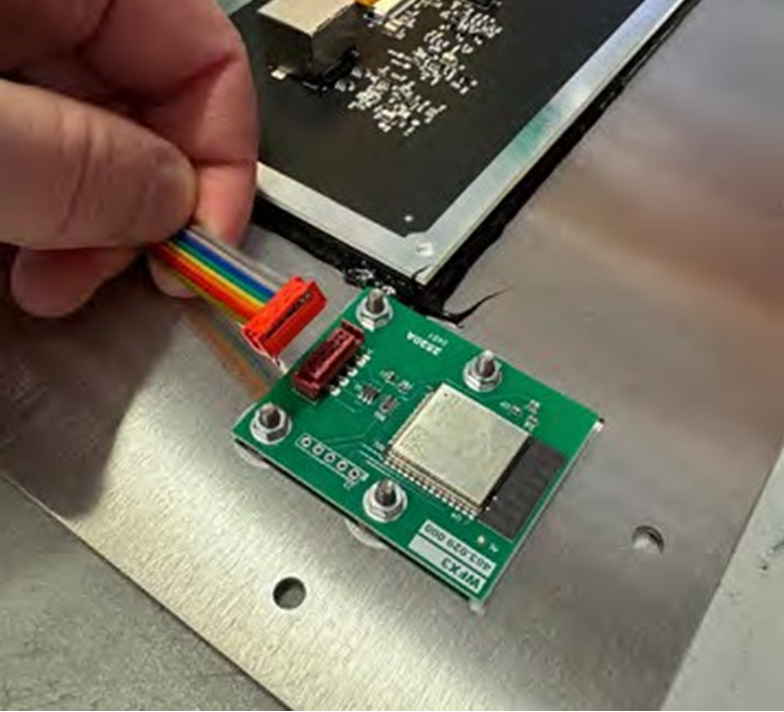

The faceplate needs to be removed (see right) prior to any of the following steps taking place. Detach the screen cables (see below)

Step 1

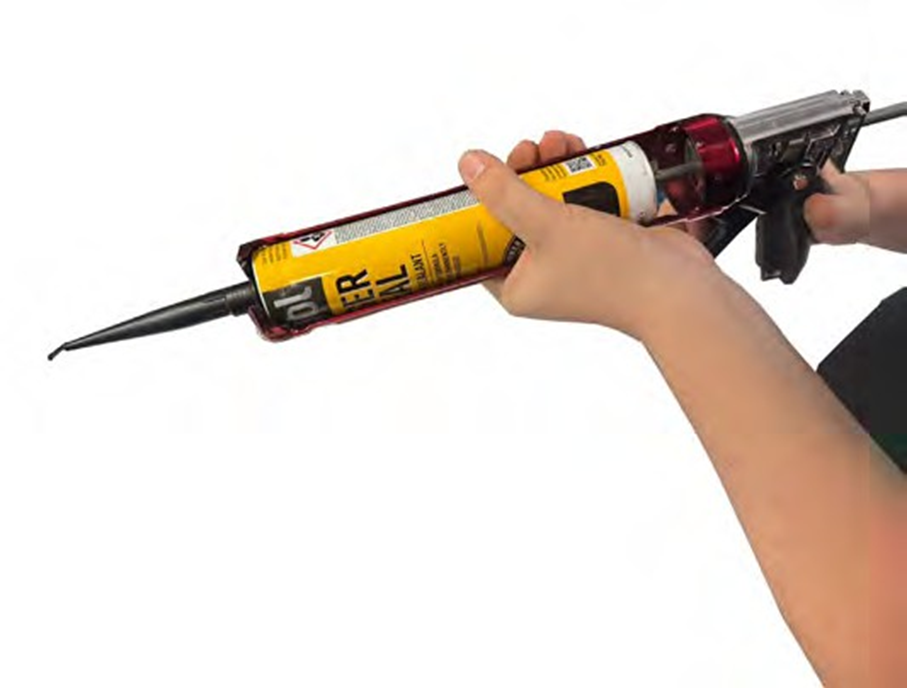

• Remove cap from sealant and install into generic 310ml applicable cartridge applicator gun.

Step 2

• Using existing double sided adhesive tape. Ensure screen is positioned correctly and installed.
• If you have already used the installed double-sided tape. Ensure the screen is placed on a soft surface – to free screen from damage – whilst under sealant applicator operation.

Step 3

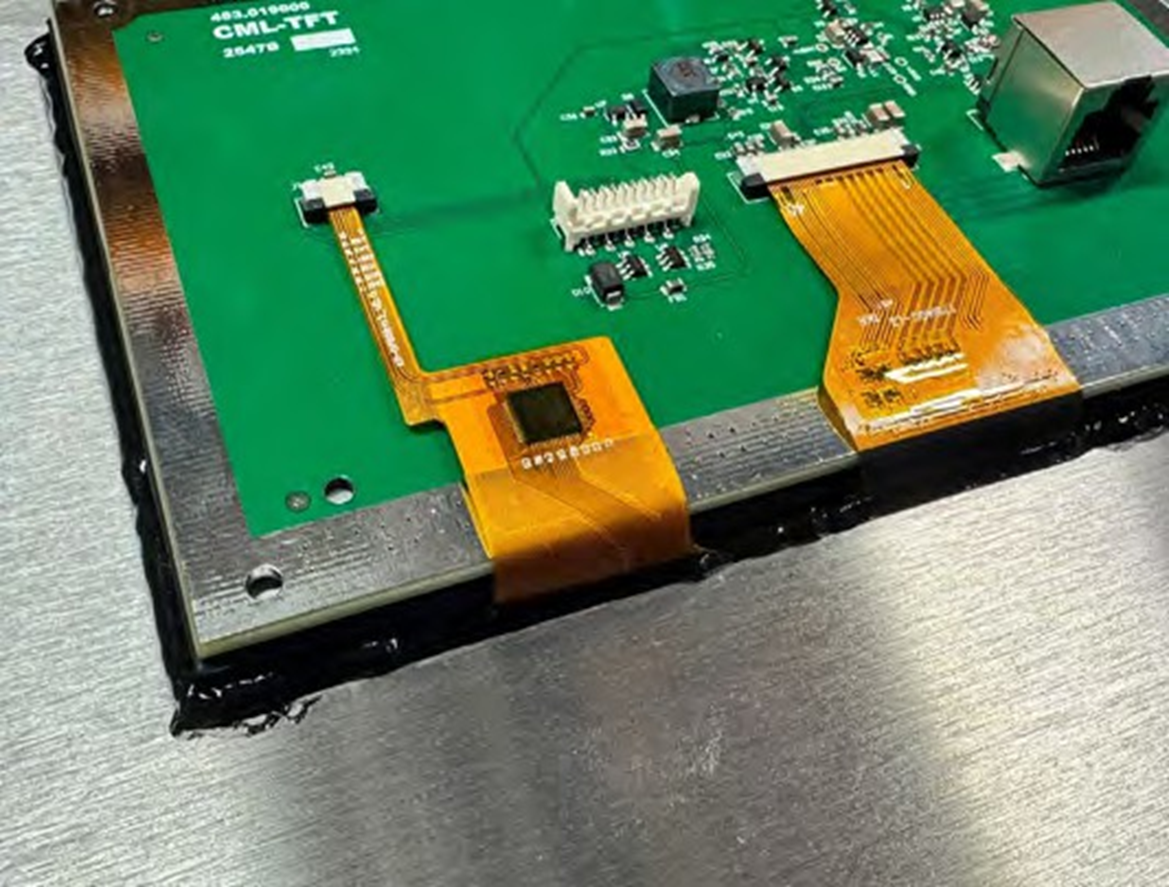

• Using the sealant – apply a bead [see illustration] to the underside of the screen.
•  This will create full peripheral coverage.
